Youxi projection
1 / 4
| Model | C30-1 |
| Product description | 1080P high brightness smart projector |
| Projection Specification | |
| Projection Technology | LCD(Totally-enclosed light Engine) |
| Display Chip | LED light source |
| Light Luminance | 500 ANSI Lumens |
| Standard Resolution | 1920*1080 |
| Projection Area | 40inch-150inch |
| Projection Ratio | 1.35:1 |
| Projection Distance | 1.2m--4.5m |
| Aspect Ratio | 16:9 |
| Focus mode | Auto focus |
| Keystone Correction | Auto keystone |
| System Parameters | |
| Screen Mirror | Airplay/MiraCast |
| OS | Android 13 |
| Main Chipset | Amlogic T950S |
| CPU | Quad core ARM Cortex-A53 |
| GPU | ARM Mali-450 MP2 |
| RAM | 2GB DDR4 |
| ROM | 32GB EMMC |
| WiFi | WiFi6 2.4G/5G 802.11a/b/g/n/ac/ax |
| Bluetooth | BT 5.4 |
| Basic parameters | |
| Video Support (up to 4kx2k@60fps) |
H.265 HEVC [email protected] up to 4kx2k@30fps VP9 Profile 2-10 up to 1080p@60fps H.264 AVC HP@ L4.2 up to 1080p@60fps H.264 MVC up to 1080p@60fps MPEG-4 ASP @L5 up to 1080P@60fps (ISO-14496) WMV/VC-1 SP/MP/AP up to 1080p@60fps AVS-P16(AVS+)/AVS-P2 Jizhun Profile up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) Realvideo 8/9/10 up to 1080p (Video encoding in RM, RMVB, and FLV formats is not supported. Audio encoding in Dolby, AC3/DTS format is not supported) |
| Audio Support | Supports MP3, AAC, WMA, RM, FLAC, Ogg. |
| Image Support | MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) Supports JPEG thumbnail, scaling, rotation and transition effects |
| Extended Storage | Support Hard Disk |
| Remote Control | Support IR Remote and 2.4G wireless control |
| Built-in speaker | 1*5W Speaker |
| Power Performance | AC100-240V, 50/60Hz |
| Port |
1*HDMI: HDMI2.1 Input 1*USB: USB 2.0 1*Earphone: Audio output, 3.5mm joint 1*AV IN 1*Ethernet: 100M |
| Package | |
| Colour | Gray |
| Net weight | 2kg |
| Dimension | 239.96*184.72*207.3mm |
| Gift Box weight | 2.38kg |
| Gift Box Size | 264*260*168mm |
| Carton box weight | 16.04KG |
| Carton box size | 535*293*545mm (6PCS) |
The C30-1 projector features a native standard resolution of 1920*1080 (1080P), delivering sharp and high-definition visual performance.
Yes, this smart projector is equipped with both Auto Focus and Auto Keystone Correction to ensure a perfectly aligned and sharp image effortlessly.
The C30-1 runs on Android 13 and supports wireless Screen Mirroring via Airplay and MiraCast. For connectivity, it features high-speed WiFi6 (2.4G/5G dual-band) and Bluetooth 5.4.

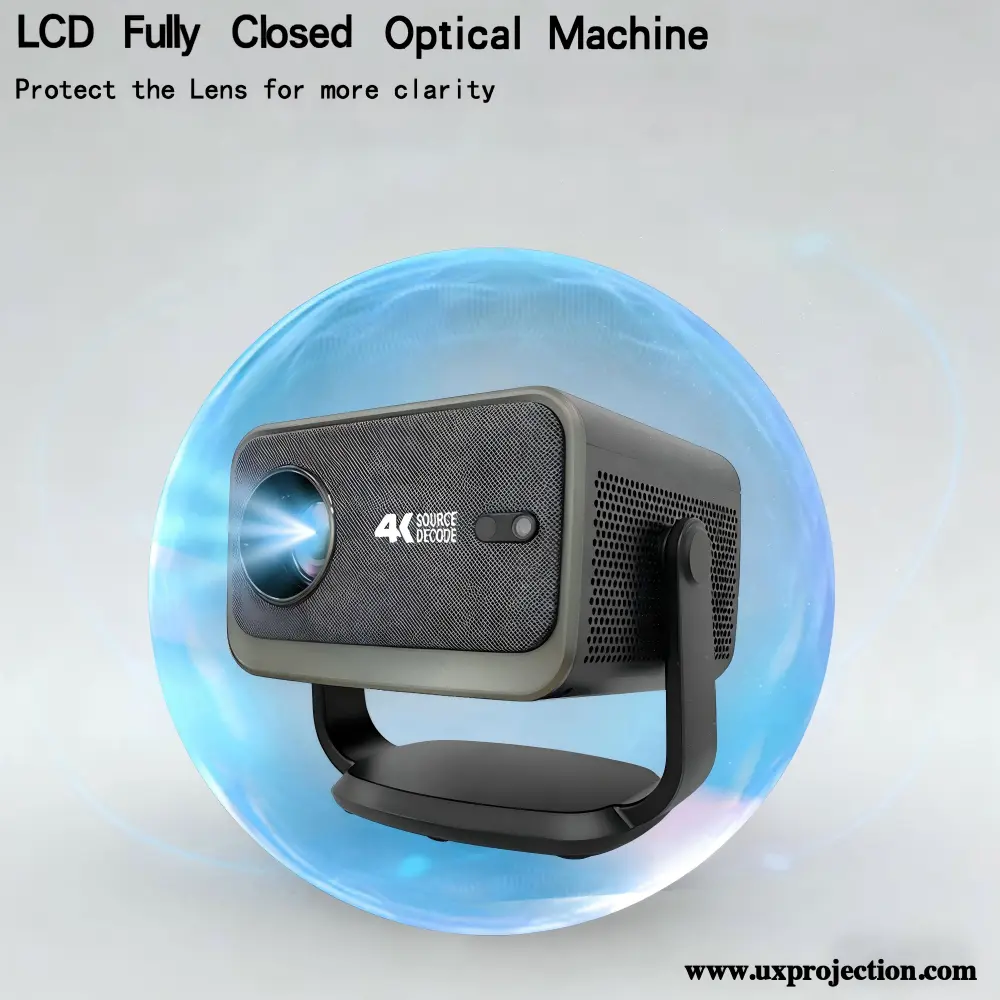

It delivers a light luminance of 500 ANSI Lumens. It utilizes an LED light source inside a totally-enclosed light engine, which protects the optical path from dust to ensure prolonged durability.

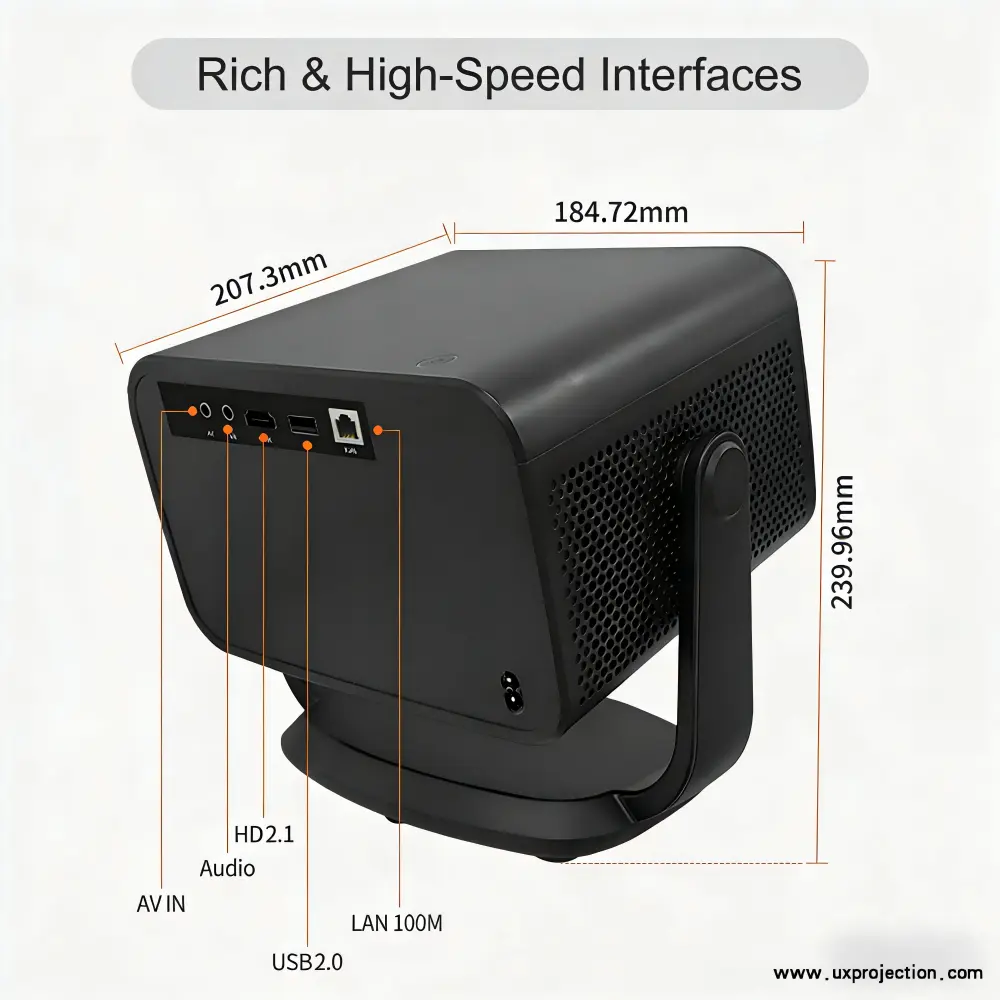

The device features 1x HDMI 2.1 Input port, 1x USB 2.0 port, 1x 3.5mm Earphone audio output, 1x AV IN port, and 1x 100M Ethernet port for stable wired network connections.
